- This 3 axis one drilling and one tufting machine MTR2.5M,worked with the plant fiber which can be running smoothly . Its designed for the industrial roller brush for the road and others industrial used. The length of roller brushes are available to make according to customers requirement.
- Details of brushes : The max length of brush block will be 1000MM（customized）; The max dia of brush block is 200MM ;with one flexible gripper on the working table ; the max working speed will be 6holes/sec
- Customized machine can betufted the machine with abrasive，PP,PET, bristle,others.
- Independent 3 axis motion ,simple, stable
3 axis brush machine, Brush & Broom Machines

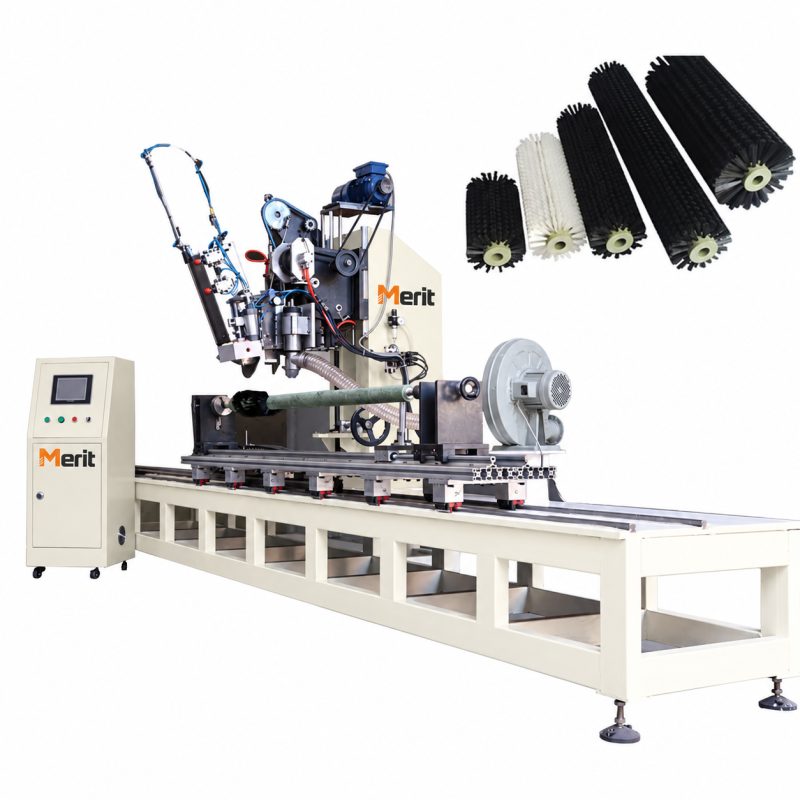

3 axis roller brush drilling and tufting mahcine -MTR1.5M

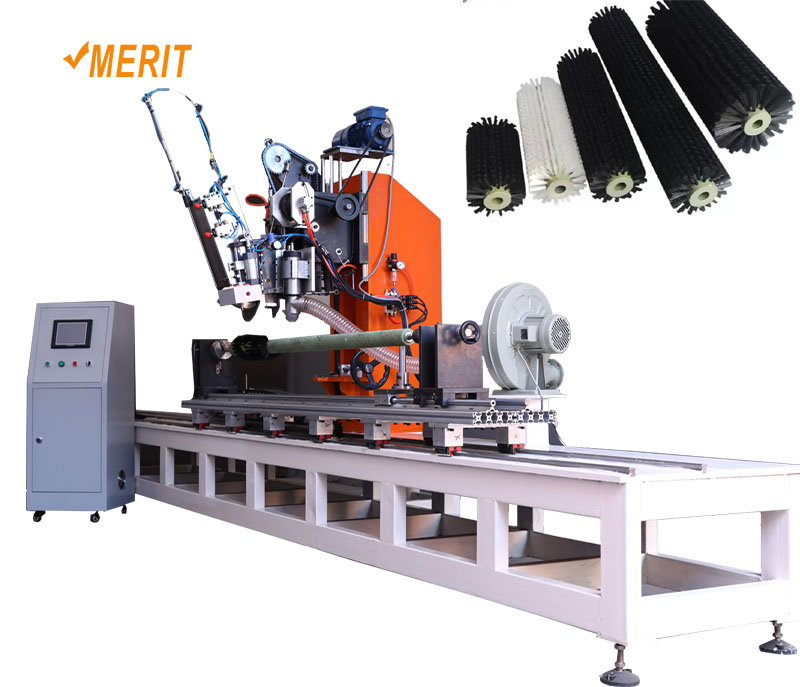

3 axis roller brush drilling and tufting mahcine is used to make those big and long industrial roller brushes. With a drilling-head and a tufting-head, it can drill holes and tuft filaments synchronously. It’s installed with automatic vacuum cleaner and manual lubrication system.
protection of machines : Please keep guide rails and ballscrews cleaned , and make sure that there is no scrap sticking on them, so taht it wont decrease the precision.
| voltage | 220V or 380V |
|---|---|
| Dia of holes | 5-8holes/sec |
| Dia of fiber | 0.4 -1 mm |
| PLC size | 5.7inch (Chinese &English),50-60HZ |
| Filament outside holes | 30-100mm |
