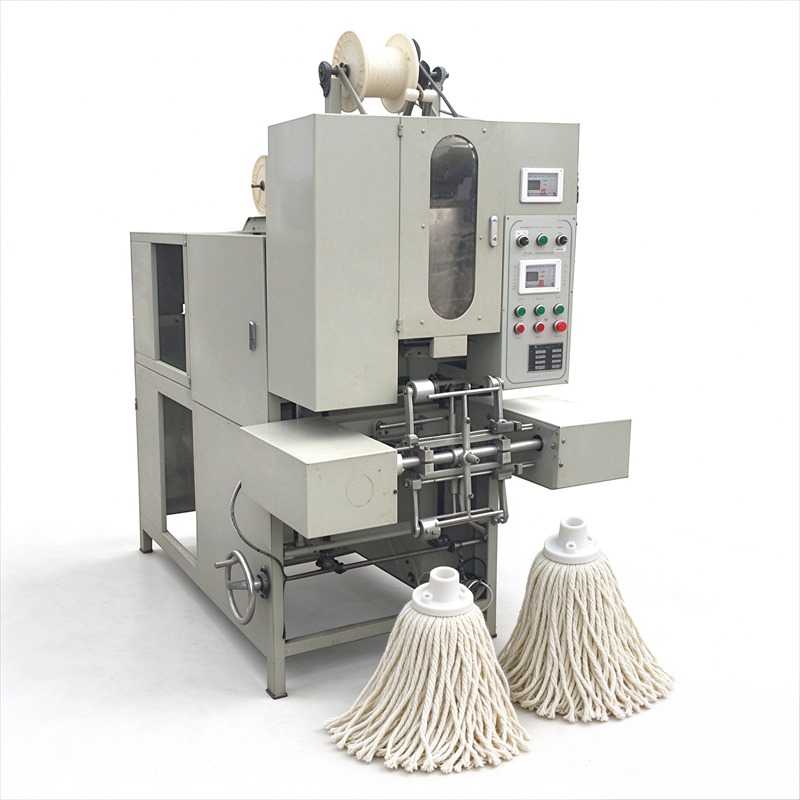

Manufactured by Merit Factory. The CM02 presses plastic mop sockets onto cotton mop heads with two die stations for coordinated machine pressing and manual loading.
What is the CM02 double-die mop press used for?
A PLC and touch-screen interface control fixed-length preparation and the press cycle. Two die stations let an operator load one station while the other completes pressing, supporting a steady and safer production rhythm.
Key production benefits
- Two independent die-loading positions
- PLC control with production-data display
- Fixed-length processing to reduce material variation
- Guarded press area and organized operator workflow
- Suitable for common plastic cotton-mop sockets
Technical specifications
| Specification | Value |
|---|---|
| Machine model | CM02 |
| Rated output | Up to 600 mop heads/hour |
| Machine size (L×W×H) | 2,500 × 1,000 × 1,800 mm |
| Machine weight | Approx. 700 kg |
| Installed power | 3.0 kW |
| Standard voltage | 220 V; other standards on request |
| Control system | PLC with touch-screen interface |
| Tooling | Two press-die stations; dies matched to socket sample |
Applications and production planning
Used for cotton string mop heads that require molded plastic sockets or buckles. Die geometry, socket design and yarn bundle size should be confirmed from samples before manufacture.
For a project quotation, send the finished mop sample or drawing, raw-material details, target output, local voltage and available floor space. Merit Factory will confirm the feeding, tooling, guarding and control configuration before production.
