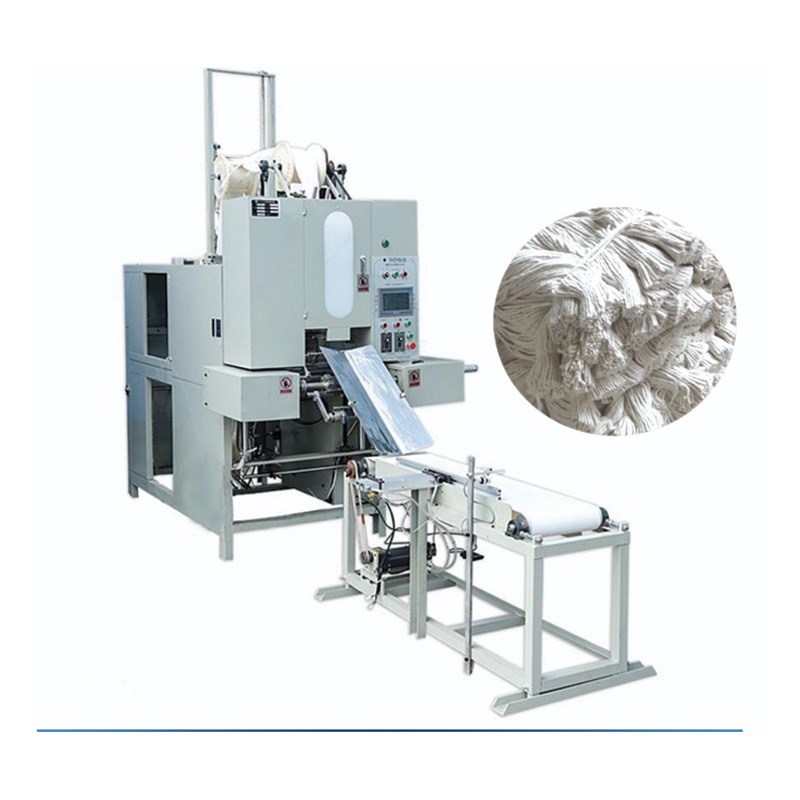

Manufactured by Merit Factory. The CM01 cuts, bundles and wraps cotton mop yarn in a continuous automated cycle for consistent downstream mop-head assembly.
How does the CM01 prepare cotton mop yarn?
Upper and lower drive rollers feed the yarn bundle evenly into the wrapping and cutting stations. The cutting unit includes an automatic sharpening function, while push-button adjustment positions the wrapping point for different bundle lengths.
Key production benefits
- Integrated yarn feeding, wrapping and cutting
- Automatic knife sharpening for repeatable cutting
- Dual-roller drive for smoother handling of large cotton-yarn bundles
- Electrical adjustment of the wrapping position
- Finished bundles ready for mop-head assembly
Technical specifications
| Specification | Value |
|---|---|
| Machine model | CM01 |
| Rated output | Up to 2,000 bundles/hour |
| Machine size (L×W×H) | 4,000 × 3,000 × 1,600 mm |
| Machine weight | Approx. 500 kg |
| Installed power | 3.0 kW |
| Standard voltage | 220 V; other standards on request |
| Control system | Automatic control with push-button position adjustment |
| Key functions | Feeding, wrapping, cutting and automatic knife sharpening |
Applications and production planning
Designed for cotton and blended mop-yarn preparation before pressing, buckling, stitching or socket assembly. Bundle length and wrapping position are confirmed against the buyer’s mop specification.
For a project quotation, send the finished mop sample or drawing, raw-material details, target output, local voltage and available floor space. Merit Factory will confirm the feeding, tooling, guarding and control configuration before production.
