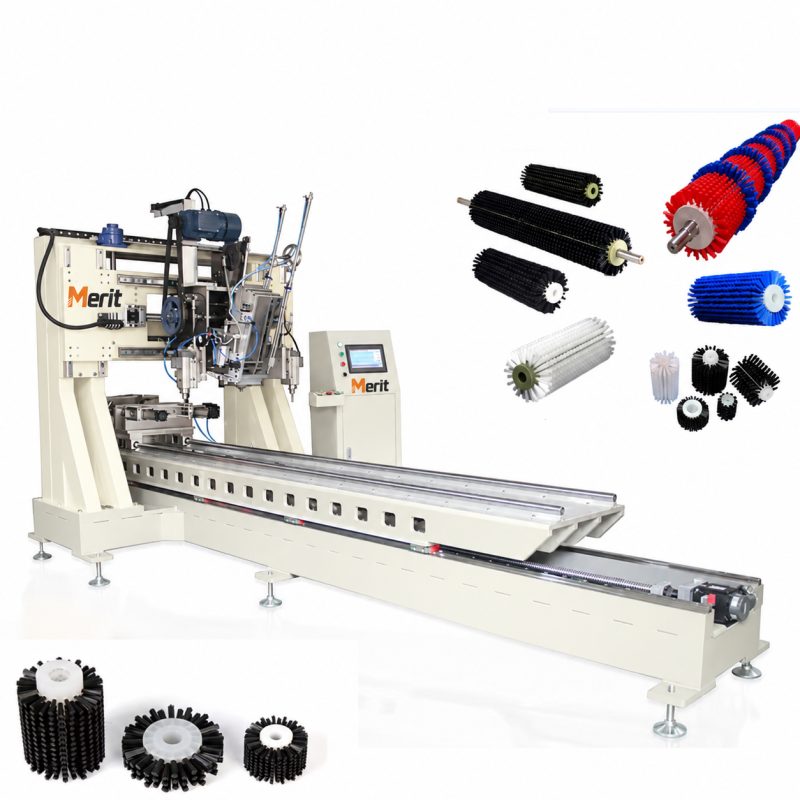

WXL 02 roller brush drilling and tufting machine
,

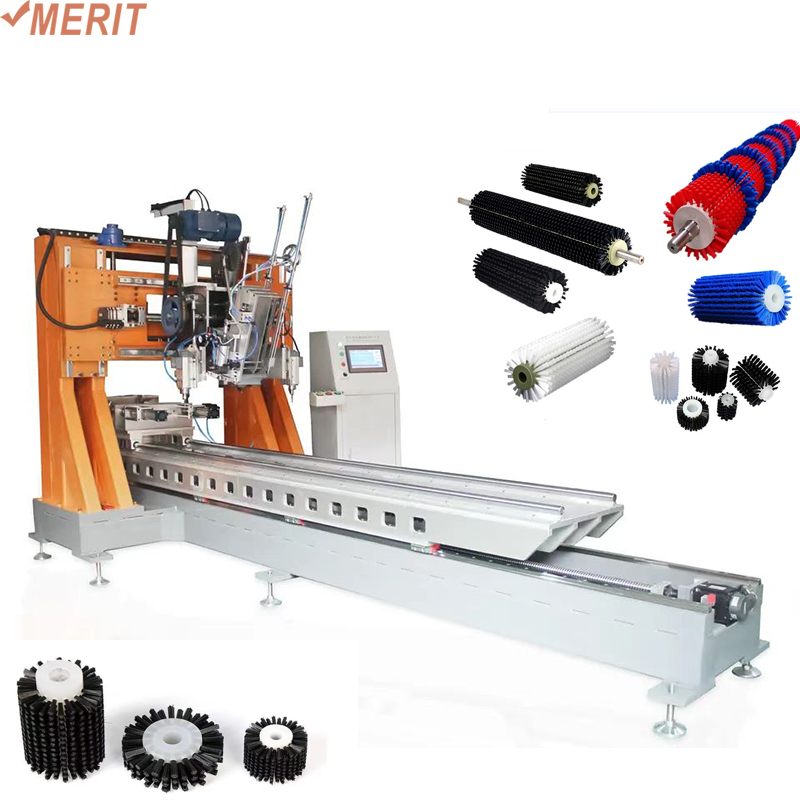

3-Axis Roller Brush Drilling and Tufting Machine WXL 02

WXL 02 combines one drilling head and one tufting head for industrial roller brushes, with a fixture matched to the roller block.

Categories: , Tags: , , ,
Request a Quote

Send this model with your quantity or production requirements.

Roller brush dimensions

The listed example accommodates a roller block up to 500 mm long and 200 mm in diameter. Confirm the shaft, clamping arrangement and any custom working range from the product drawing.

Material and output

Provide the block material, hole pattern, filament and target output. Confirm suitable material feeding and operating speed during a sample trial; hole rate is not the same as finished-brush output.

Production preparation

Agree the electrical supply, installation space, dust handling, lubrication schedule and spare parts before shipment.

speed

Confirmed during the sample trial
dia of holes

4-7MM
voltage

220V or 380V
material of filament

PP,PET etc
Filament outside holes

50-90mm
PLC size

5.7inch (Chinese &English),50-60HZ
Delivery time

Confirmed in the quotation
