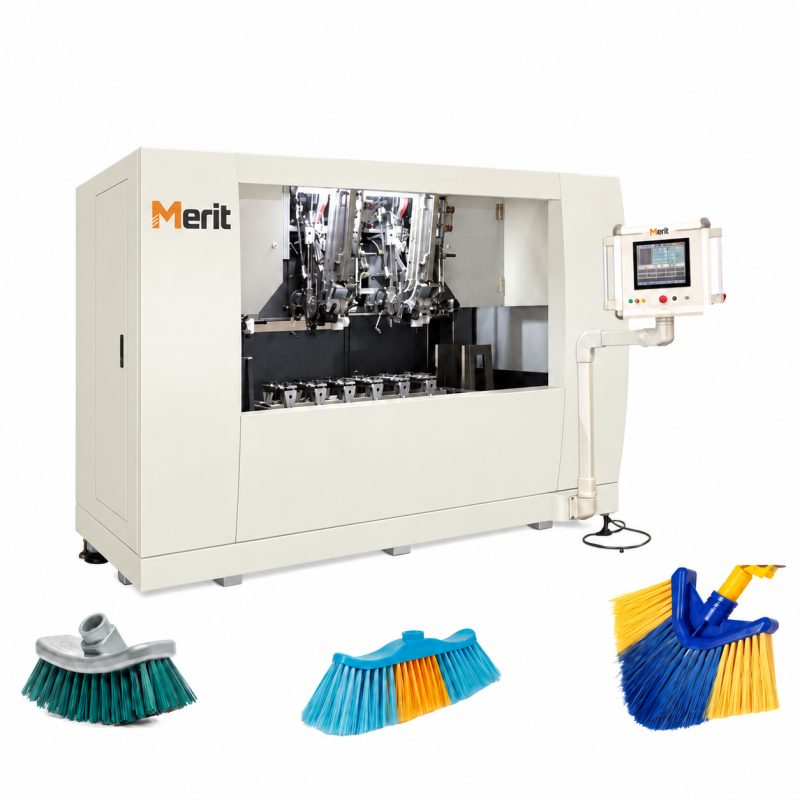

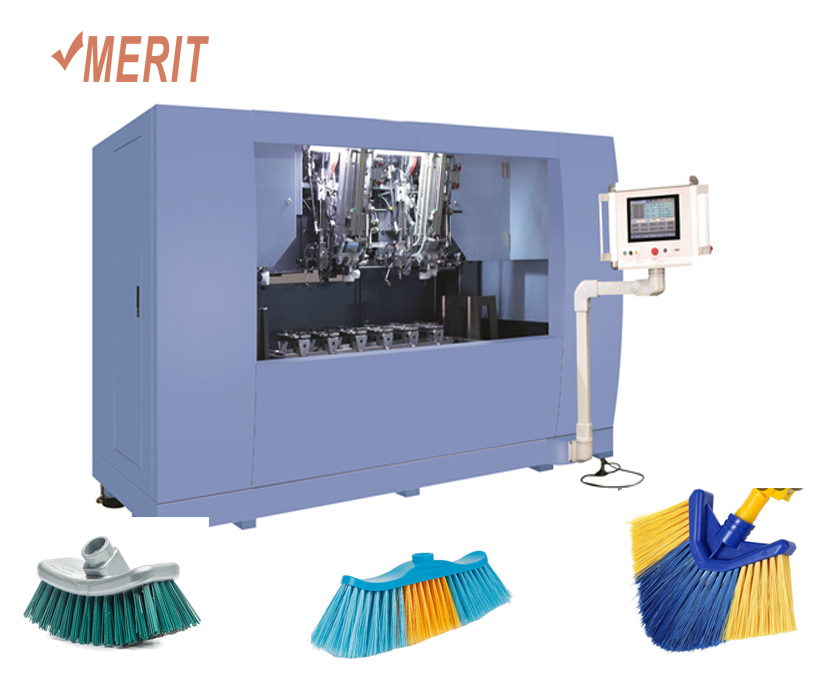

MTB70 5-axis broom drilling and tufting machine

5-Axis Broom Drilling and Tufting Machine MTB70 — 3 Drilling, 2 Tufting Heads

Name: 5-Axis Broom Drilling and Tufting Machine MTB70 — 3 Drilling, 2 Tufting Heads
Brand: Merit Factory
SKU: 10

This MTB70 configuration uses three drilling heads, two tufting heads and six clamping stations for shaped brush and broom blocks.

SKU: 10 Categories: 5-Axis Brush Machines, Brush Machine Tags: broom machine, broom tufting machine, brush and broom machines, brush tufting machine

Request a Quote

Send this model with your quantity or production requirements.

Five-axis brush production

The machine positions the brush blocks for drilling and tuft insertion using the approved hole programme. Matched clamps and tooling support the selected broom or brush design.

Material and changeover planning

Confirm the block material, filament, wire and colour-feeding arrangement against the finished brush sample. A change of product may require different clamps, tooling and programme settings.

Sample review and support

Send the finished brush sample or drawing, block material, hole pattern, filament and target output. Confirm tooling, operating speed, loading tasks and changeover during a trial with representative materials. Request the agreed training, spare-parts list and warranty terms with the quotation.

Weight	3500 kg
Dimensions	358 × 210 × 210 mm
workbench axis	5
production speed	5-10holes/sec
stations	6
hair tufting range	70mm
length of filament range	50-280
max length of brooms	600MM
dia of holes	3-8mm
weight	4000kg
size	Confirmed in the final installation drawing
