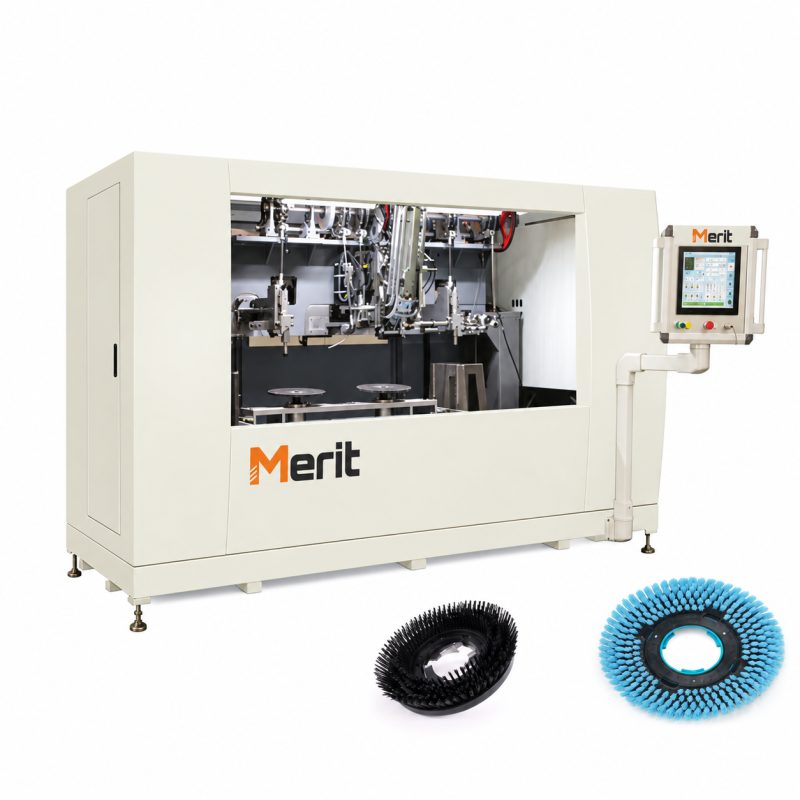

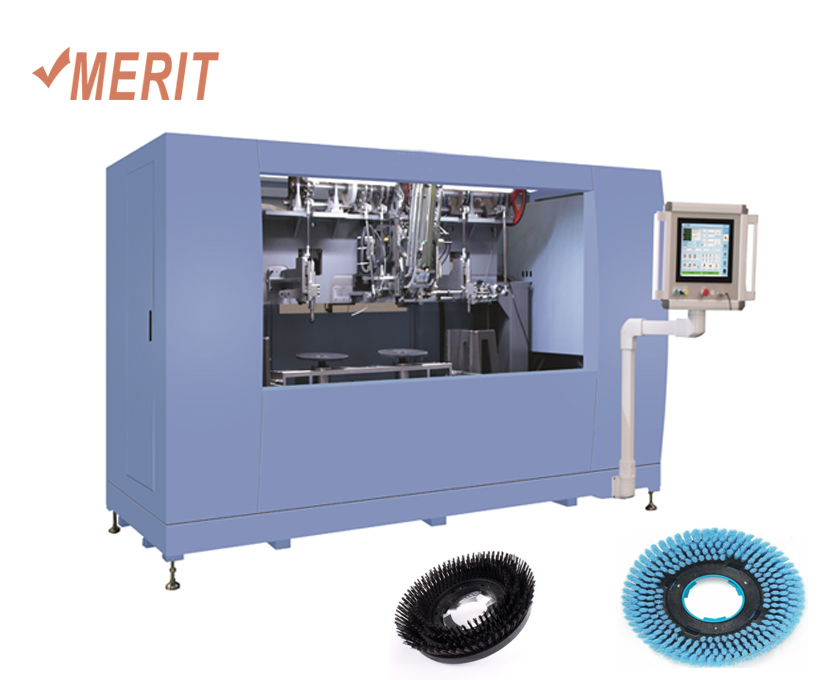

MTD70 5-axis disc brush drilling and tufting machine

5-Axis Disc Brush Drilling and Tufting Machine MTD70

Name: 5-Axis Disc Brush Drilling and Tufting Machine MTD70
Brand: Merit Factory
SKU: 100

MTD70 combines two drilling heads, one tufting head and three clamping stations for disc brush production.

SKU: 100 Categories: 5-Axis Brush Machines, Brush Machine Tags: 5 axis disc brush, brush machinery, brush tufting machine

Request a Quote

Send this model with your quantity or production requirements.

Disc brush drilling and tufting

Five-axis positioning guides the brush block through the configured drilling and tufting sequence. The fixtures must match the disc diameter, hole pattern and filament specification.

Tooling and configuration

Discuss the required disc brush and any alternative brush shapes before selecting the worktable and clamps. Tooling and accessories included in the supply are identified in the quotation.

Confirm the production process

Send the finished brush sample or drawing, block material, hole pattern, filament and target output. Confirm tooling, operating speed, loading tasks and changeover during a trial with representative materials.

Weight	3500 kg
Dimensions	358 × 210 × 210 mm
workbench axis	5
production speed	Confirmed during the sample trial
Stations	3
hair tufting range	70mm
length of filament range	50-280
Dia of disc brush	600MM
weight	3500kg
size	328021002100MM
