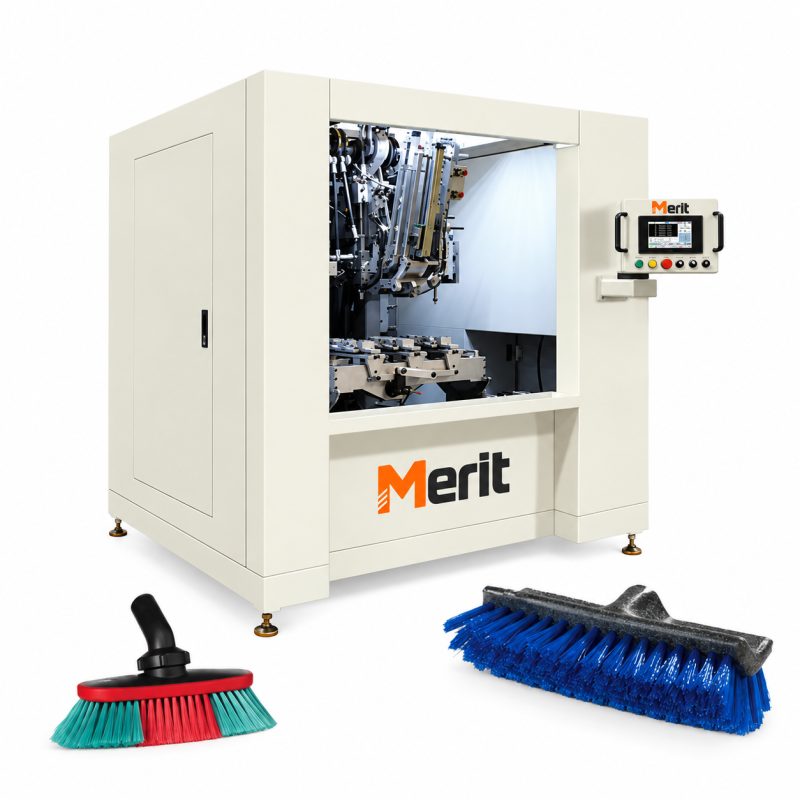

MTB70 5-axis broom tufting machine
,

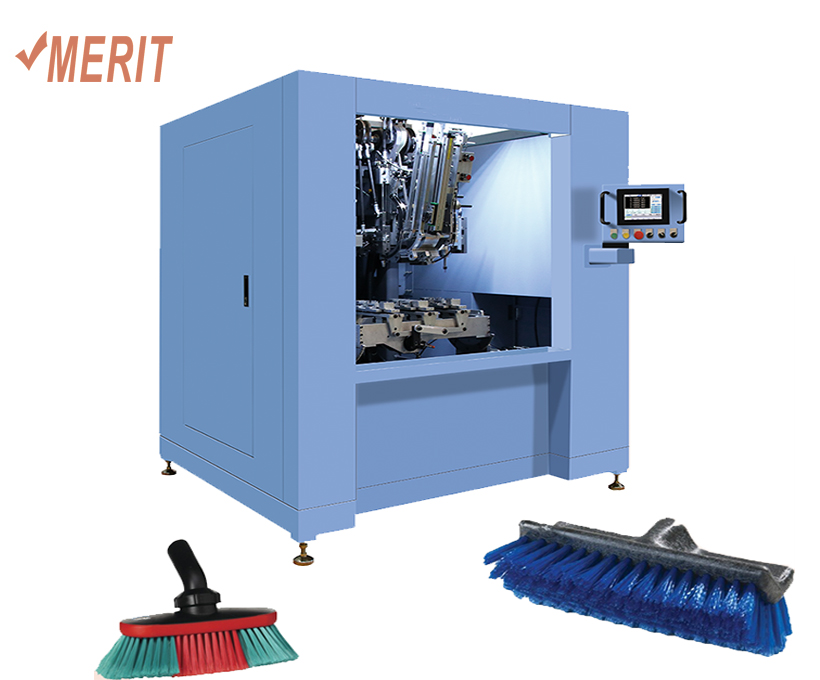

5-Axis Broom Tufting Machine MTB70 — 2 Drilling, 1 Tufting Head

MTB70 combines two drilling heads and one tufting head with five-axis positioning for shaped brush and broom blocks.

Send the block drawing, filament and required output so the clamping and tooling arrangement can be confirmed.

Categories: , Tags: , , , ,
Request a Quote

Send this model with your quantity or production requirements.

Drilling and tufting for shaped broom blocks

This MTB70 configuration uses two drilling heads, one tufting head and three clamping stations. The fixture and hole programme must match the finished brush or broom.

Define the application before ordering

Provide a sample or dimensioned drawing, block material, hole pattern, filament specification and tuft length. Confirm loading, changeover and the required output using representative materials.

Power and installation

Installed power and the local electrical supply are confirmed with the final machine configuration. Request the approved electrical schedule, machine footprint and service-clearance drawing before arranging installation.

Workbench axis

5
production speed

5-8 holes /sec
station of machines

.3
hair mouth range

70mm
dia of holes

3-8(just change the spare parts for others )
Installed power

Confirmed with final configuration
weight

3000kg
size (L*W*H)

2770*2100*2100MM
