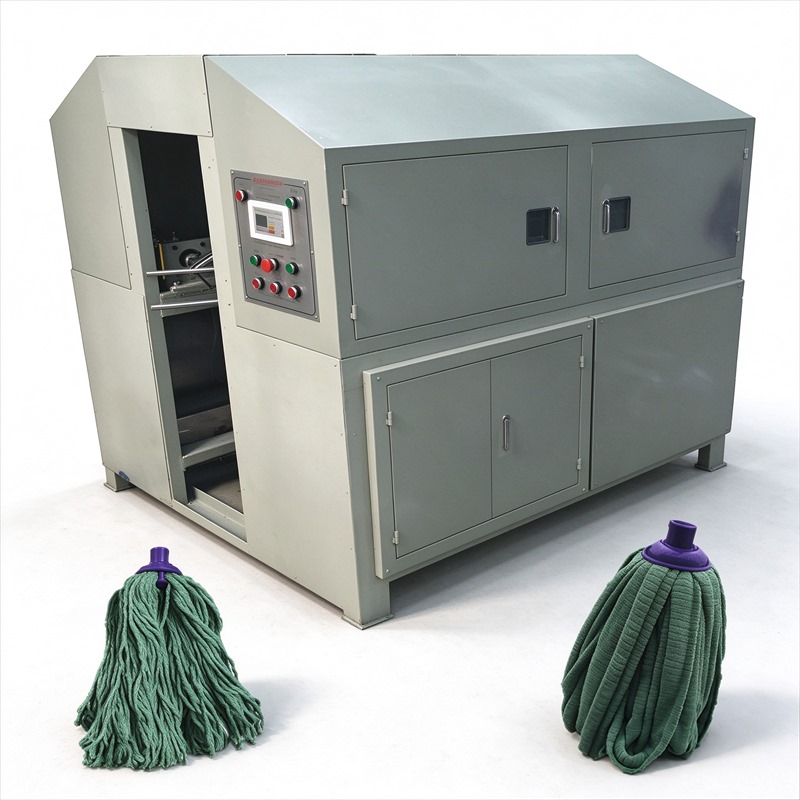

Manufactured by Merit Factory. The LC01 forms and presses the tail connection on loop-end cotton mop heads with computer-controlled counting and consistent positioning.
How does the LC01 assemble loop-end cotton mop heads?
The machine controls the press cycle and lap count so the prepared loop-end bundle enters the buckle station in a repeatable position. Matched tooling closes the selected socket or tail fastener around the mop material.
Key production benefits
- Compact automated loop-end pressing cycle
- Computer-controlled lap counting
- Repeatable tail position and finished weight
- Tooling matched to the approved socket or buckle
- Reduced variation from manual pressing
Technical specifications
| Specification | Value |
|---|---|
| Machine model | LC01 |
| Rated output | Up to 300 mop heads/hour |
| Machine size (L×W×H) | 1,500 × 1,500 × 1,500 mm |
| Machine weight | Approx. 300 kg |
| Installed power | 1.5 kW |
| Standard voltage | 220 V; other standards on request |
| Control system | Computer/PLC press-cycle control |
| Suitable products | Loop-end cotton string and blended-yarn mop heads |
Applications and production planning
For loop-end cotton string and blended-yarn mop heads using plastic sockets or tail fasteners. Loop length, bundle weight and socket dimensions are confirmed before tooling manufacture.
For a project quotation, send the finished mop sample or drawing, raw-material details, target output, local voltage and available floor space. Merit Factory will confirm the feeding, tooling, guarding and control configuration before production.
