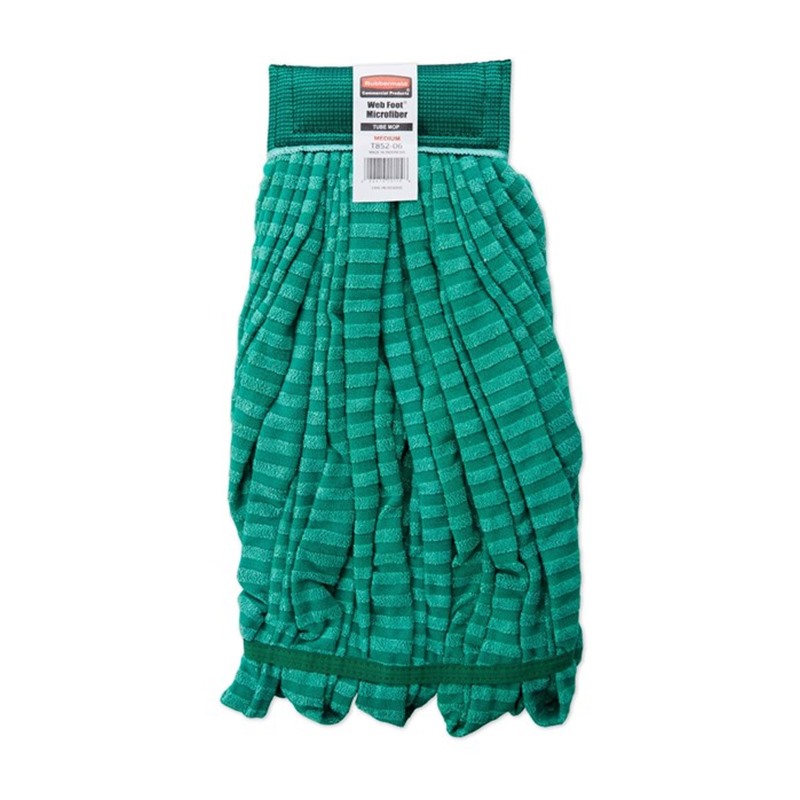

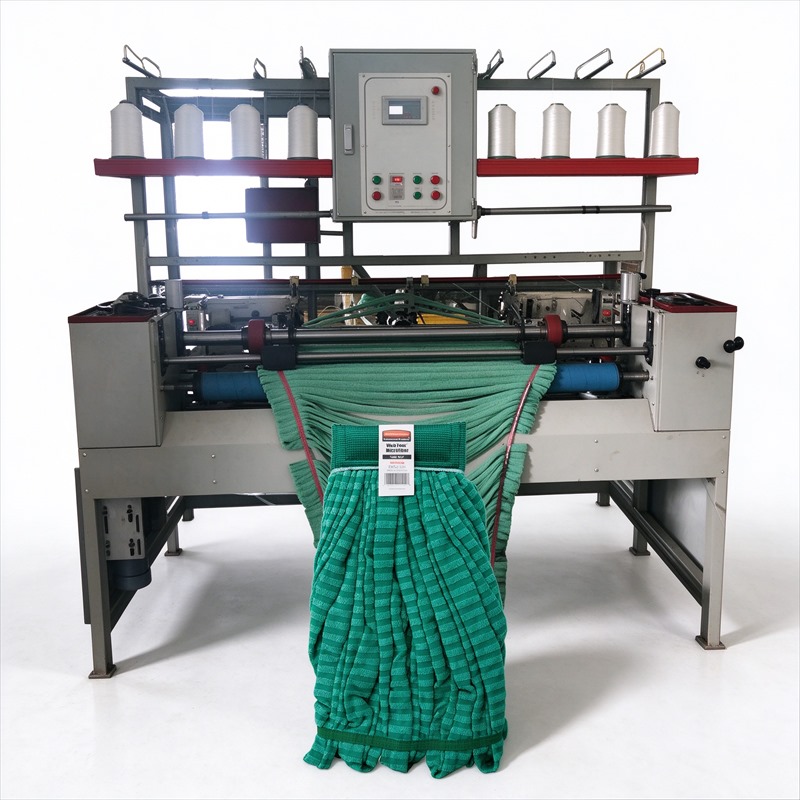

Manufactured by Merit Factory. The MT01 synchronizes microfiber tube material, tail-band sewing and winding to produce flat, even microfiber mop heads.
Why use the MT01 for microfiber tube mop production?
Material reels and winding tubes rotate in synchronization as the sewing station fixes the tail band. Guided feeding helps control thick towel-type microfiber, reduce twisting and maintain an even stitched web.
Key production benefits
- Synchronized material-reel and winding-tube drive
- Stable feeding for thick microfiber and towel-cloth material
- Tail-band sewing integrated with length control
- Reduced twisting and uneven material tension
- Configurable band position, seam and finished mop length
Technical specifications
| Specification | Value |
|---|---|
| Machine model | MT01 |
| Rated output | Up to 150 mop heads/hour |
| Machine size (L×W×H) | 2,100 × 2,100 × 2,100 mm |
| Machine weight | Approx. 800 kg |
| Installed power | 4.0 kW |
| Standard voltage | 220 V; other standards on request |
| Control system | PLC synchronized drive control |
| Suitable materials | Microfiber tube, chenille-style and towel-cloth mop material |
Applications and production planning
For microfiber tube, chenille-style and towel-cloth mop heads that require a sewn tail band. Tube diameter, material stretch, band type and final length are confirmed during trial planning.
For a project quotation, send the finished mop sample or drawing, raw-material details, target output, local voltage and available floor space. Merit Factory will confirm the feeding, tooling, guarding and control configuration before production.
