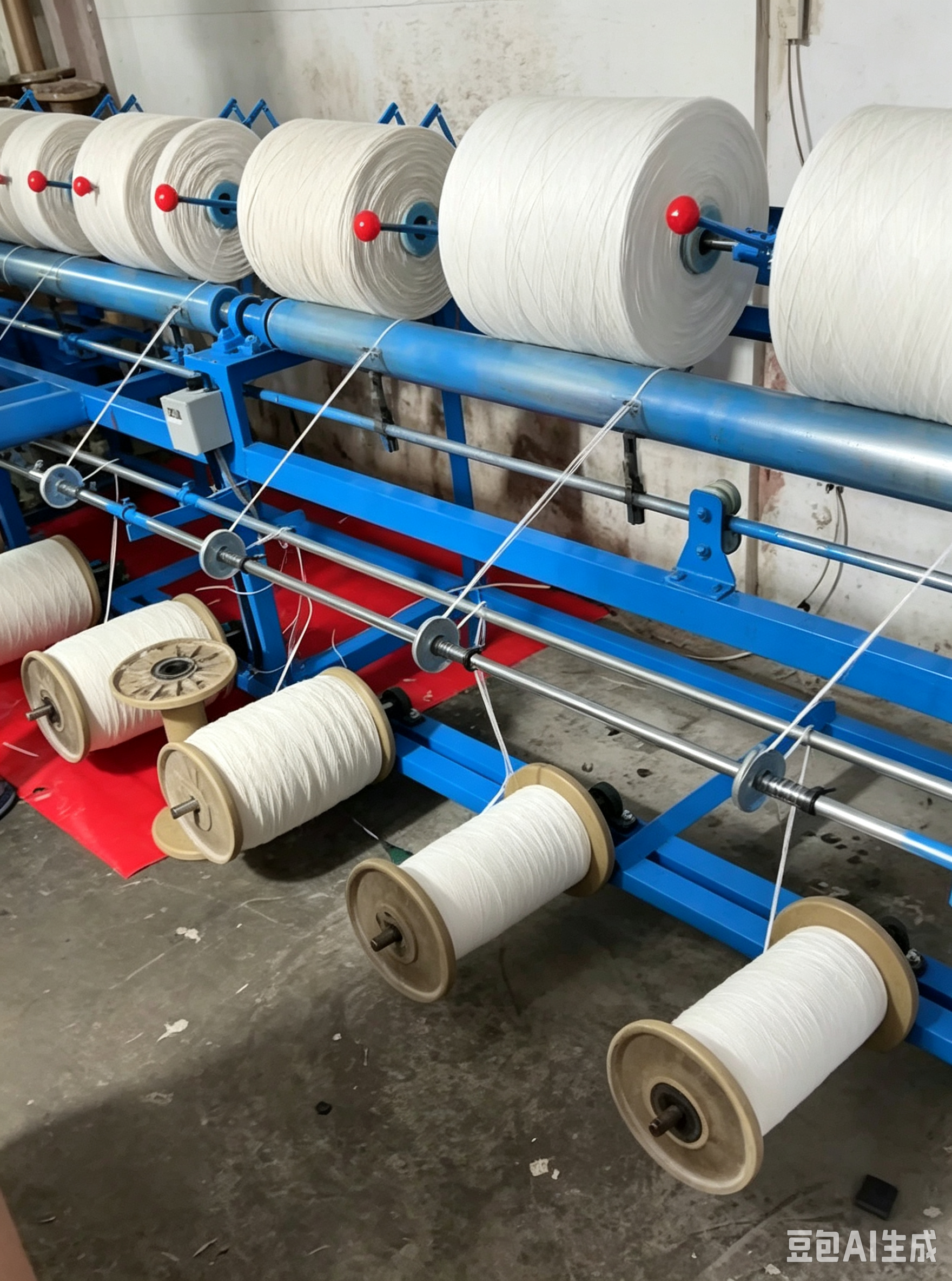

High-Speed Automatic Cone Yarn Rewinding Machine
| Parameter | Specification |
|---|---|
| Machine Type | Automatic cone rewinder / yarn winding machine |
| Application | Bobbin yarn forming, tube dyeing preparation, post-dyeing rewinding, cone-to-cone and hank-to-cone rewinding |
| Number of Spindles | 2 – 120 spindles (customizable) |
| Mechanical Speed | Up to 1,200 m/min (process speed depends on yarn quality and feed packages) |
| Package Diameter | Up to φ 290 mm |
| Package Shape | Cylindrical or conical (3°30′, 4°20′, 5°57′, 9°15′) |
| Traverse Length | 147 mm – 154 mm (standard) |
| Package Density | 0.2 – 0.4 g/cm³ (depends on yarn type) |
| Yarn Count Range | Ne 6 – 180 (cotton, flax, wool, silk, chemical fiber) |
| Power Supply | 3-phase 380V ±10%, 50/60Hz |
| Power Consumption | Approx. 75 – 100 W per spindle |
| Drive Mode | Each spindle driven by an individual motor with inverter control |
| Length Setting | Automatic length fixing, max 999,999 meters |
| Machine Layout | Vertical, single-sided or double-sided |
Key Features
- Electronic yarn detector with auto-stop on yarn break
- Automatic length fixing with electronic setting
- Slow start function for each spindle
- Intelligent tension control for uniform density
- Electronic anti-overlap / anti-patterning function
- Independent motor drive for each spindle
- Double-point waxing system with micro motors
- Vertical yarn path with no inflection, reducing friction and hairiness
- Ni-P alloy grooved drum with anti-overlapping characteristics
General Product Description
Yarn Rewinding Machine – Precision Winding for Superior Package Quality
The yarn rewinding machine is a specialized piece of textile machinery designed to rewind yarn from one package format to another, ensuring uniform tension, consistent density, and defect-free winding. Serving as the critical link between the spinning and weaving processes, this machine transforms small-capacity bobbins or skeins into larger, more manageable packages suitable for downstream operations such as warping, twisting, dyeing, and weaving.
Equipped with advanced tension control systems and electronic anti-overlap technology, the rewinding machine produces high-quality packages with excellent formation and minimal yarn wear. The machine also incorporates yarn clearing devices to remove defects such as thick places, thin places, neps, and impurities, significantly improving yarn uniformity and smoothness for superior fabric quality. Whether preparing yarn for dyeing, weaving, or further processing, this machine delivers precision and reliability at every step.
Built with robust steel construction and programmable controls, the yarn rewinding machine supports a wide range of materials including cotton, wool, hemp, silk, chemical fibers, and blended yarns, making it an indispensable tool for modern textile production
